Vibration Sensor

Accelerometers and vibration sensors for machine, structure and blast vibration measurement.

We supply piezoelectric accelerometers and impact hammers for structural testing, vibration control, drop and quality testing, machinery studies and modal analysis. The general purpose accelerometers are available with two outputs: high-impedance charge output (PE mode) and low-impedance voltage output (IEPE mode). IH series impact hammers have a rugged force sensor built into the striking face, in sizes for small to large structures, with a choice of tips to tailor the frequency range of the impulse.

Key features

Piezoelectric accelerometers, PE (charge) or IEPE (voltage) output
Models for different sensitivities and mounting
Impact hammers from miniature to 100 lb class
Interchangeable tips to set the impulse frequency range
For modal analysis, resonance checks and structural health testing

Request a quotation Back to Instrument

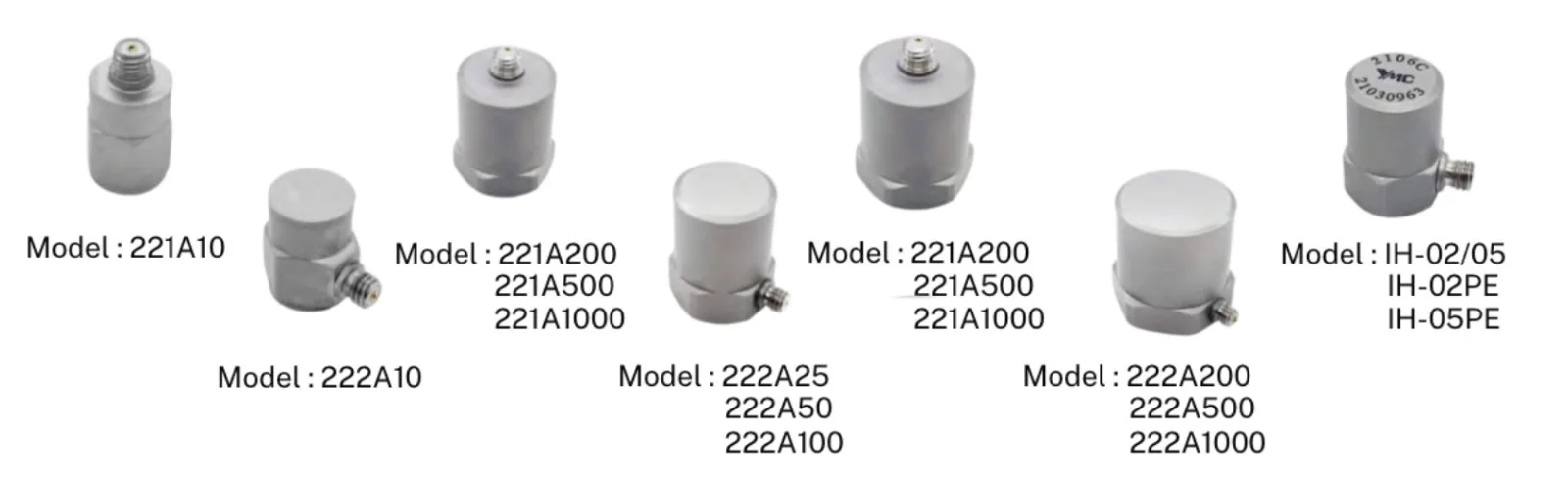

General purpose accelerometers

Piezoelectric accelerometers in two output types: high-impedance charge output (PE mode) and low-impedance voltage output (IEPE mode). Used for structural testing, vibration control and testing, drop testing, quality testing, machinery studies and modal testing. Models: 221A10, 221A200, 221A500, 221A1000, and 222A10 to 222A1000.

Impact hammers

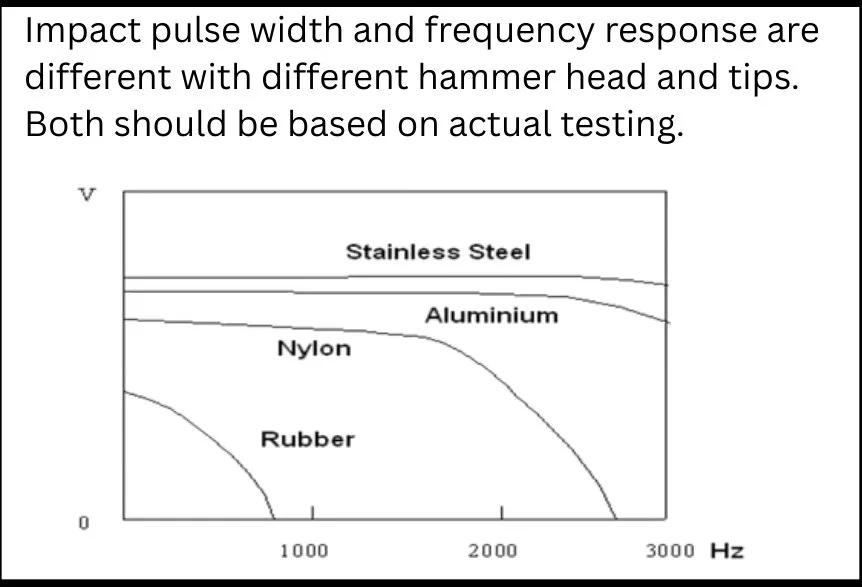

IH series impact hammers have a rugged force sensor built into the striking face. Different hammer sizes suit different test objects, and a set of tips lets you tailor the frequency range of the impulse. Used for structural health testing, resonance checks and modal analysis. Pulse width and frequency response change with the hammer head and tip (steel, aluminium, nylon or rubber), so the choice should be confirmed by actual testing.

Vibration calibrators

Keep your vibration measurements trustworthy. Our vibration calibrators produce a known, stable vibration so you can check sensor sensitivity and the whole measurement system, from quick hand-held checks in the field to full calibration in the laboratory. See the models below.

Specifications

IEPE OUTPUT MODE
Excitation voltage	+18 to +28 V
Constant current	2 to 10 mA
DC offset	10 to 14 V DC
Output impedance	≤100 Ω
CHARGE OUTPUT MODE (PE)
Insulation resistance	≥10¹² Ω
ACCELEROMETER MODELS
221A series	221A10, 221A200, 221A500, 221A1000
222A series	222A10, 222A25, 222A50, 222A100, 222A200, 222A500, 222A1000
IMPACT HAMMER MODELS
IH series	IH-01-1, IH-01, IH-02/05 (IH-02PE, IH-05PE), IH-10/20 (IH-10PE, IH-20PE), IH-50 (IH-50PE), IH-100

Vibration calibrators

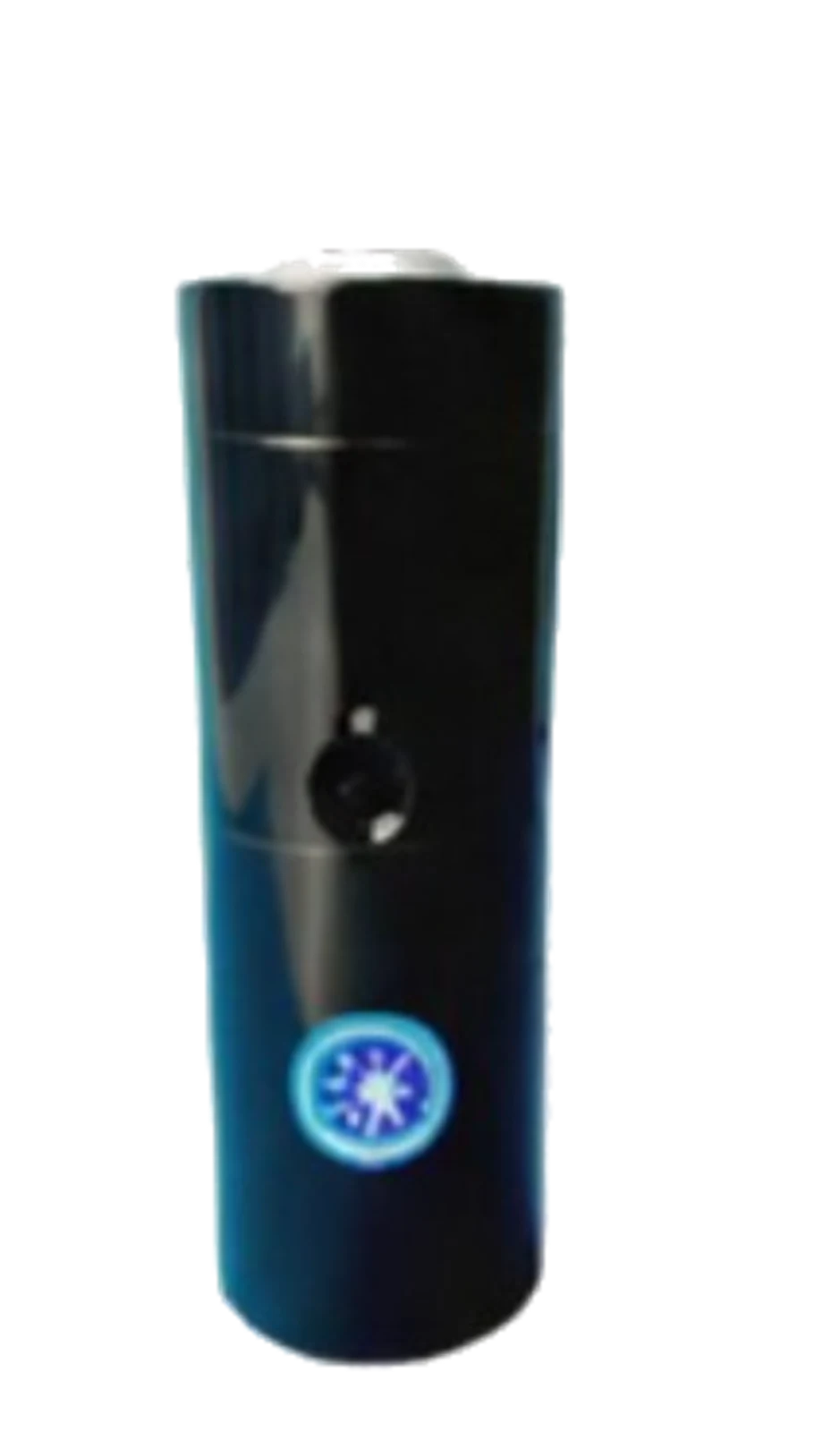

VC-01

Mini hand-held calibrator with built-in battery, small and lightweight. A fully independent reference source for quick checks of acceleration, velocity and displacement sensor sensitivity, and of the whole measurement chain.

Reference: 159.2 Hz, 1 g RMS
Automatic battery check
Auto shut-off after 50 s

Request a quotation

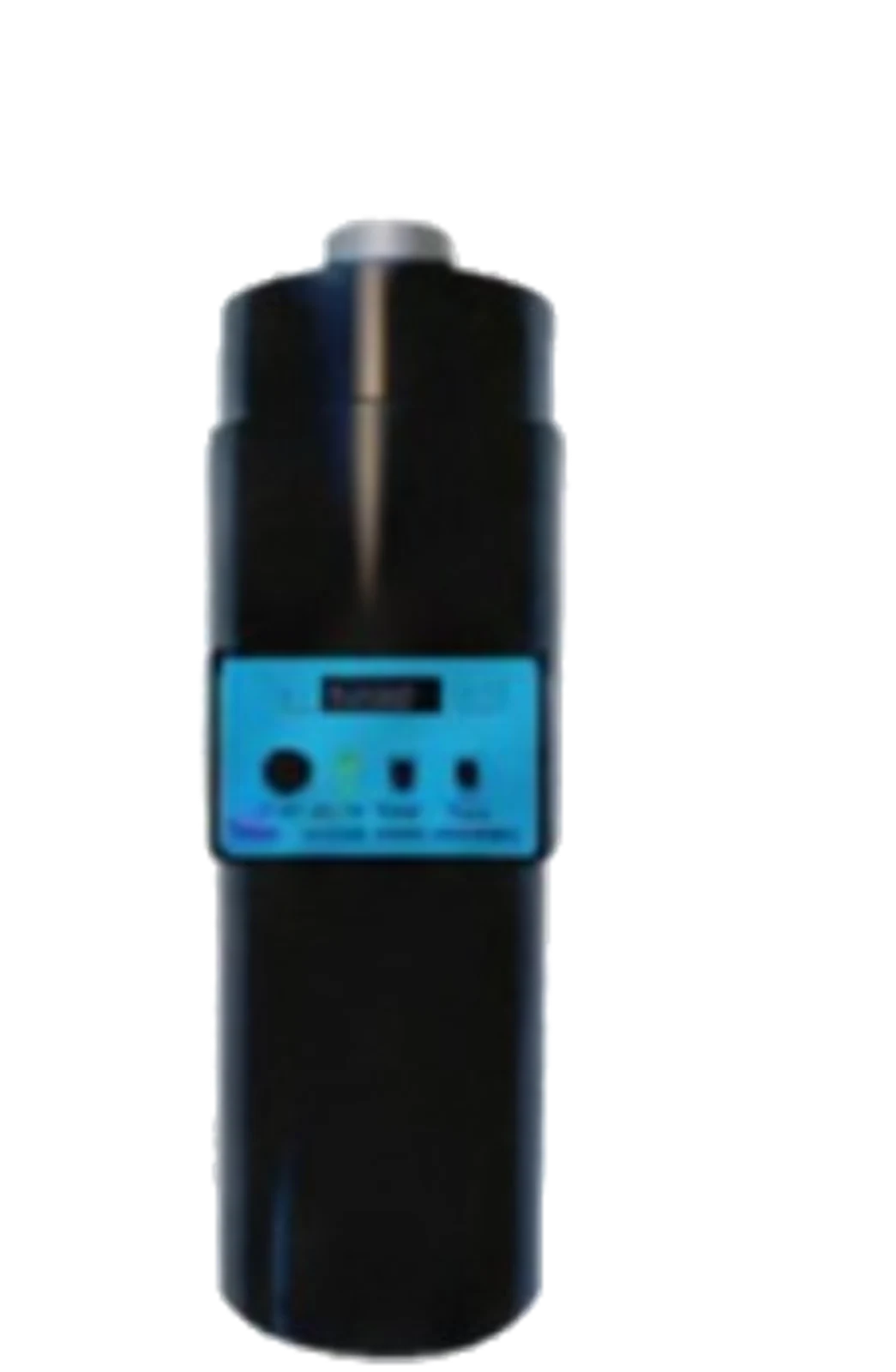

VC-01A

Improved hand-held model with selectable frequencies and vibration amplitudes, and an OLED display of frequency and amplitude in real time.

Preset frequencies and amplitudes
Real-time OLED display

Request a quotation

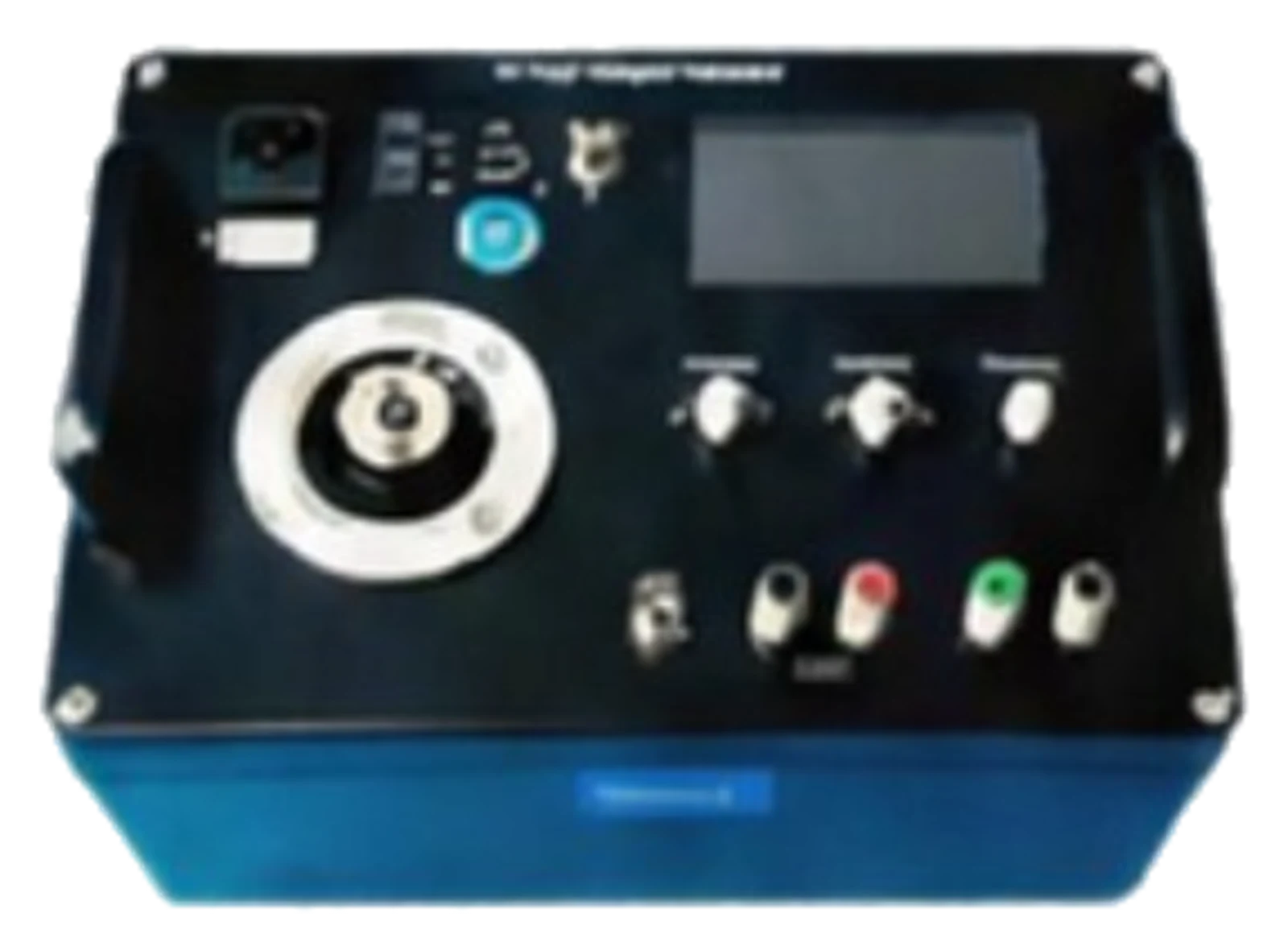

VC-02

Complete vibration calibrator with shaker, reference sensor, signal generator, power amplifier, signal conditioner and digital display. Compact, solid and precise, for laboratory or factory use.
