Precision Voltage Output Accelerometers 100 Series



Multiple Axis Model

Parallel and Triangle shear design sensing element, choices of High Precision Imported Piezoelectric Ceramic（J series products） or Normal Domestic Piezoelectric Ceramic


Bi-Axis Measurement Model

  • Choices of different sensitivities from 2 mV/ ms-2 to 10 mV/ ms-2
  • Frequency range (±5%) from 0.5Hz up to 5 kHz
  • Low profile design, height of 13 mm
  • Center through hole with 360° mounting angle

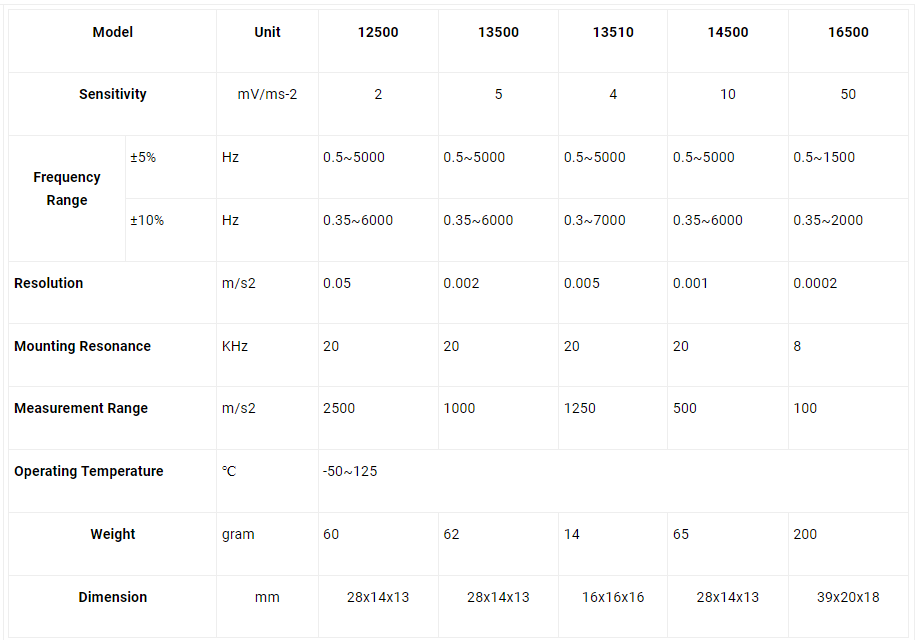

    • Specifications


    Tri – Axis Measurement Model

  • Choices of different sensitivities from 2 mV/ ms-2 to 10 mV/ ms-2
  • Frequency range (±5%) from 0.5Hz up to 5 kHz
  • Low profile design, height of 13 mm
  • Center through hole with 360° mounting angle



    • Specifications
